Pharmaceutical packaging machine solution WBG-QD480

Pharmaceutical packaging machine solution WBG-QD480

Wanbon Boway Machinery Co., LTD is specialized at manufacturing packaging machinery and associated equipments. The key technical engineers possess 20 years experience in the packaging machinery.

Email: [email protected]

Product detail

Pharmaceutical packaging machine solution WBG-QD480

Model WBG-QD480 full servo motor wrapping machine

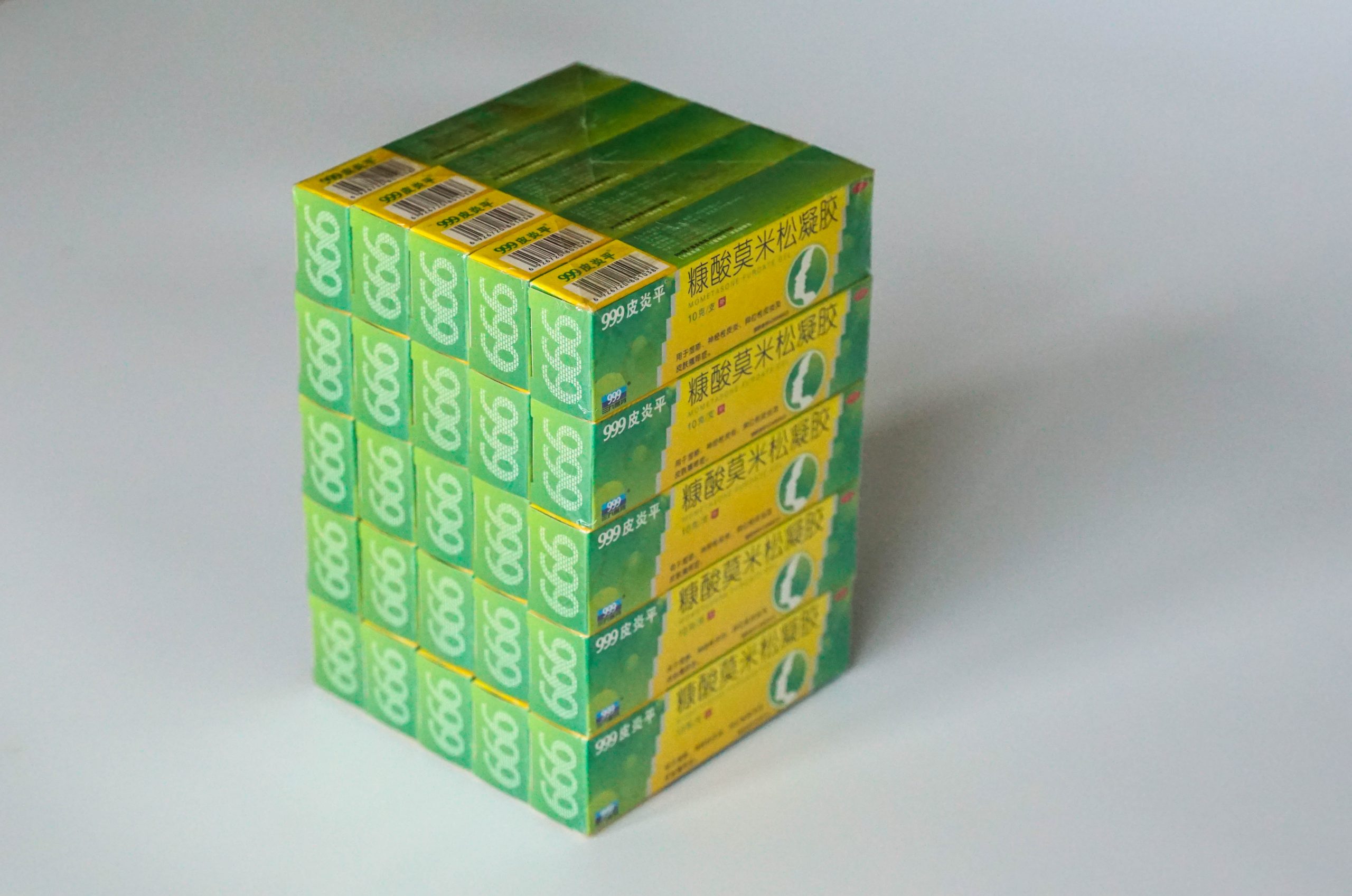

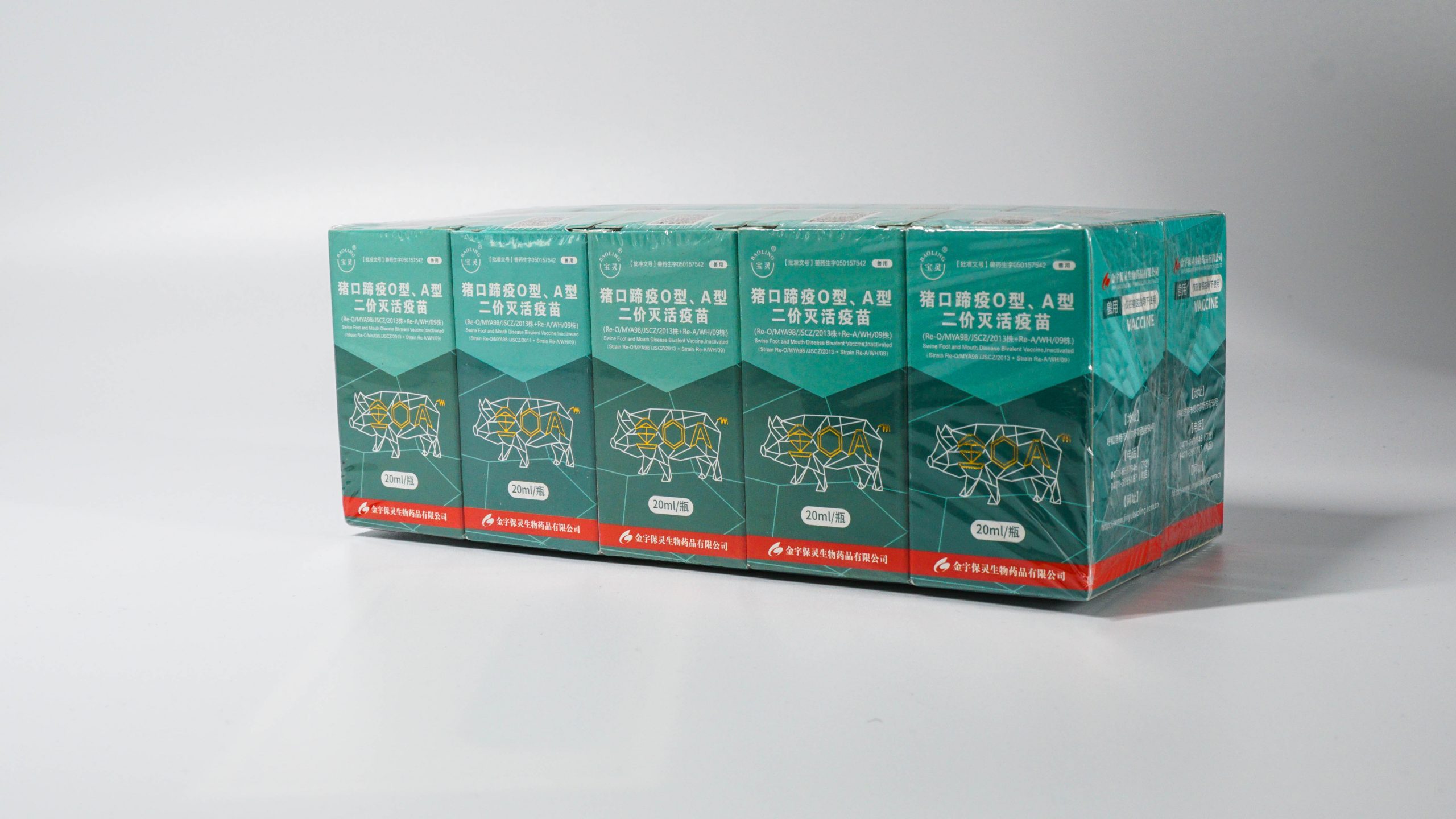

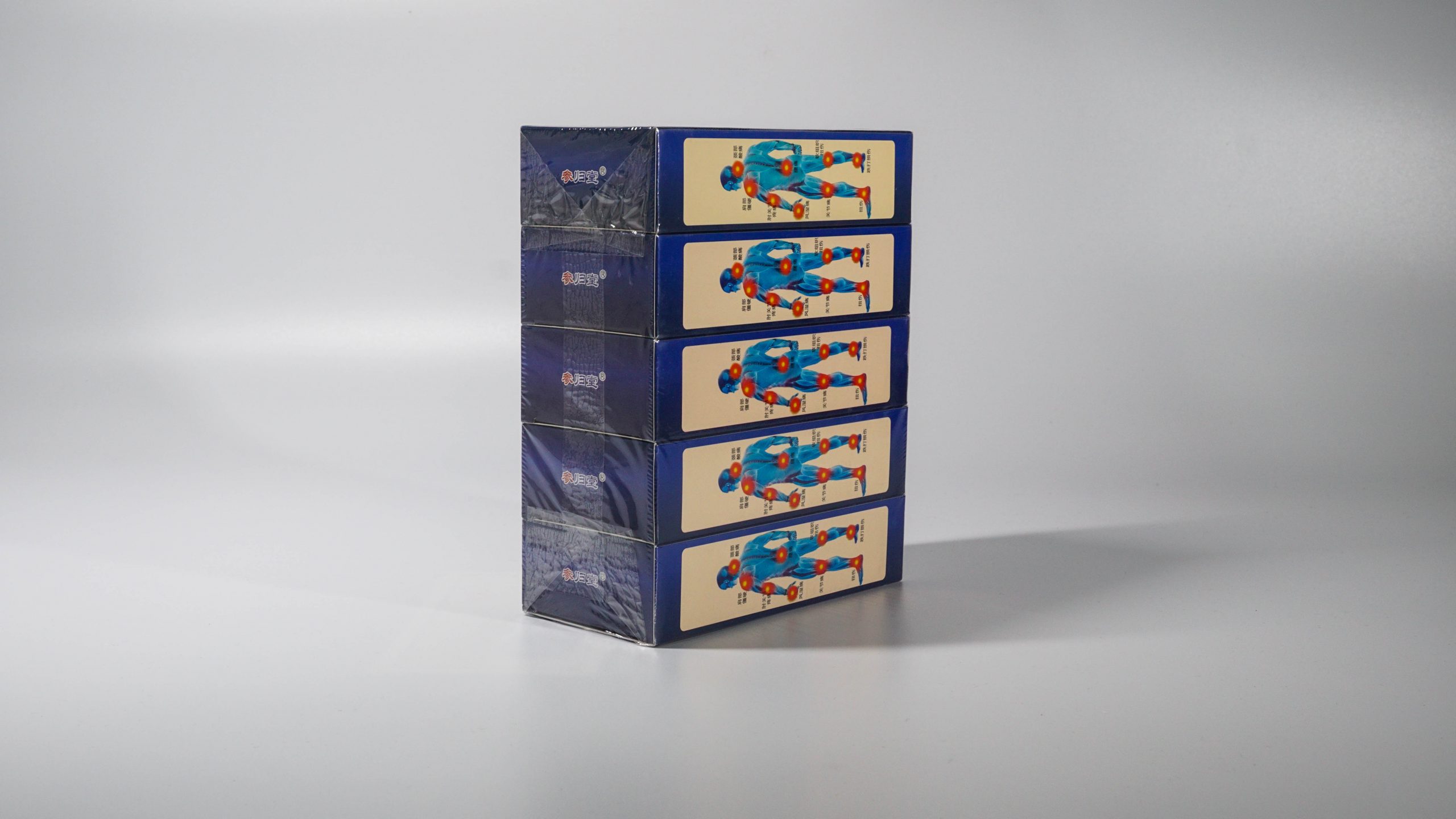

To pack multi-small carton box in different combination.such as 1x6x3,1x3x4

Waterproof,moistureproof,antipollution,anti-channel conflic,easy to load in carrugated box.


The Wanbon overwrapper can provide the versatile solution you are looking for, as follows:

*The flexibility to overwrap many product sizes on any one machine

*Tight wrap in either, polypropylene, cellophane, paper, clear and printed films

*Carton protection – prevention from carton surface damage

*Security – peace of mind the product has not been tampered with

*Seal area flexibility – allows the longitudinal seal to be positioned either on trailing edge or on the base of the carton, depending on carton design and marketing needs

*Geometrically exact end folds – giving that sleek finished look

*Easy open tear tape facility

Automatic overwrapping machine

Full automatic:feeding,standing,sorting,

packaging,hot sealing,counting

Fully sealed packaging,waterproof,


Scope of Application:

This product is suitable for automatic feeding, stacking, sorting, packaging, heat sealing and counting of high-speed line square boxes.

Pharmaceutical packaging machine solution WBG-QD480

Pharmaceutical packaging machine solution WBG-QD480

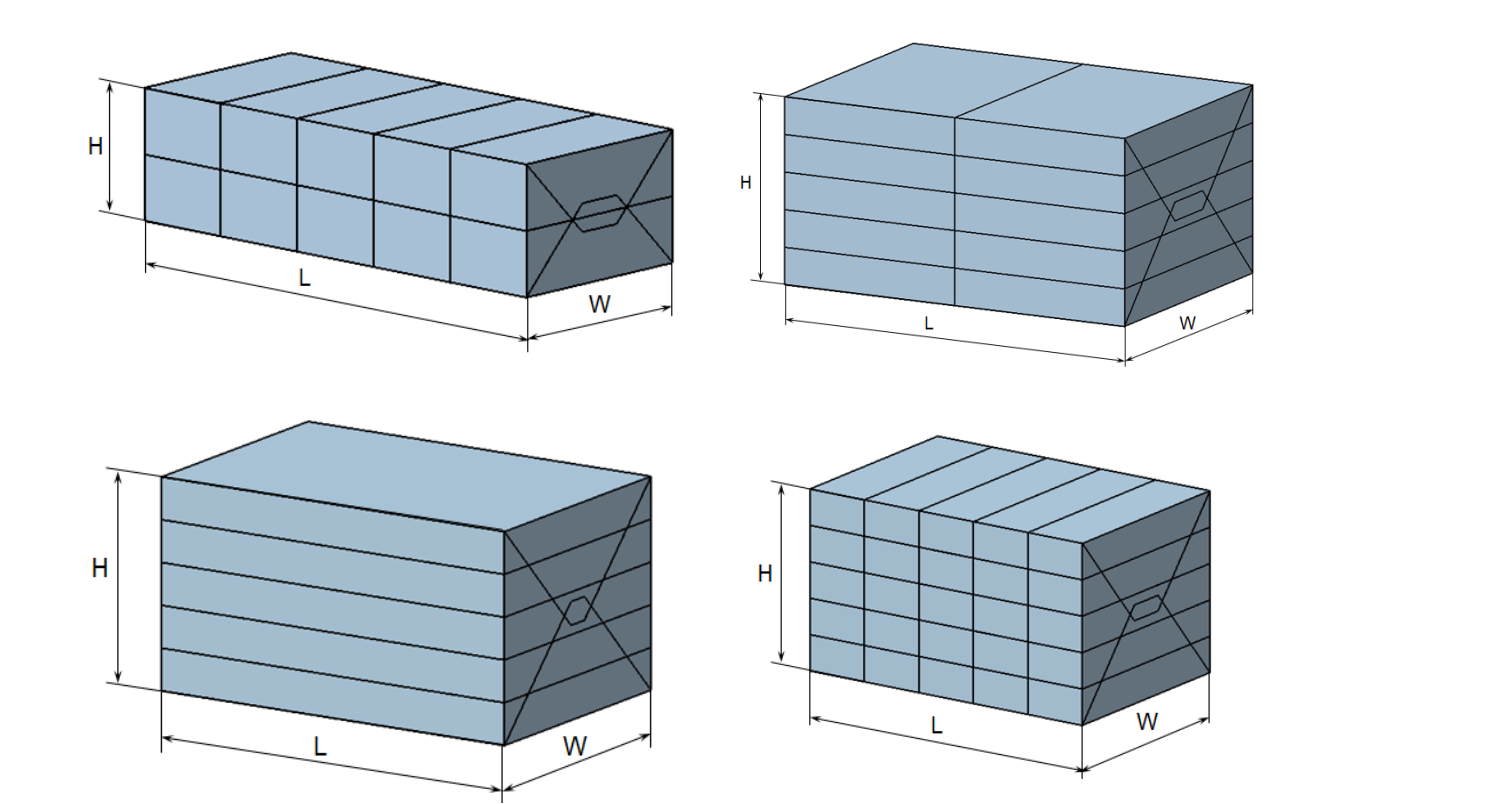

Package style:

Pharmaceutical packaging machine solution WBG-QD480Pharmaceutical packaging machine solution WBG-QD480


1. Fully sealed packaging: waterproof, moisture-proof, anti-pollution, anti-channeling.

2. Instant sealing, no material storage at the heat sealing station: similar to cold packaging, no effect on heat-sensitive pharmaceutical products.

3. The film roll runs from bottom to top to ensure the stable operation of the equipment.

4. Automatic: automatic feeding, stacking, sorting, packaging, heat sealing and counting.

5. The electrical control system is centered on the programmable controller PLC: to ensure stable and reliable operation of the equipment, and stable performance.

6. The packaging speed can be steplessly adjusted. Box packaging of different specifications (size, height, width) can be packed by replacing the folding paper and a few parts.

The main technical parameters:

Project name 520 580

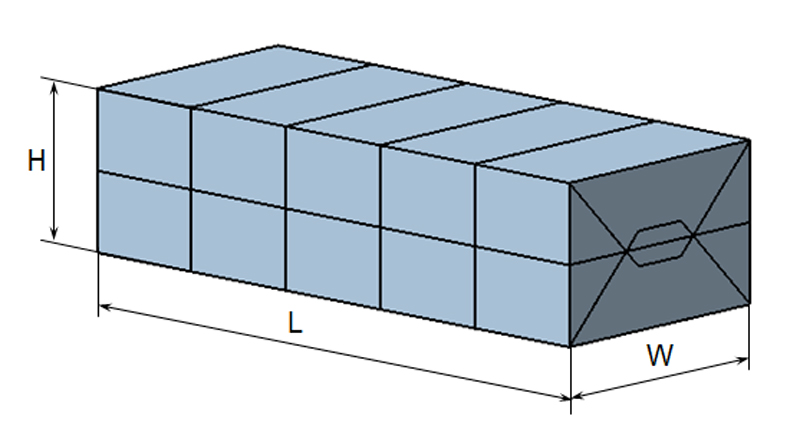

Packing Dimension L×W×H (mm) (80-300)×(70-130)×(30-120) (80-350)×(70-160)×(30-120)
Packing speed (packs/min) (30-50) (30-50)
Packing material BOPP or PVC BOPP or PVC
Inner hole diameter (mm) Φ75/0.021-0.028 Φ75/0.021-0.028
Air consumption (L/min) (20-30) (20-30)
Total power (kw) 2. 25 2.25
Integrated noise dB(A) <65 <65d

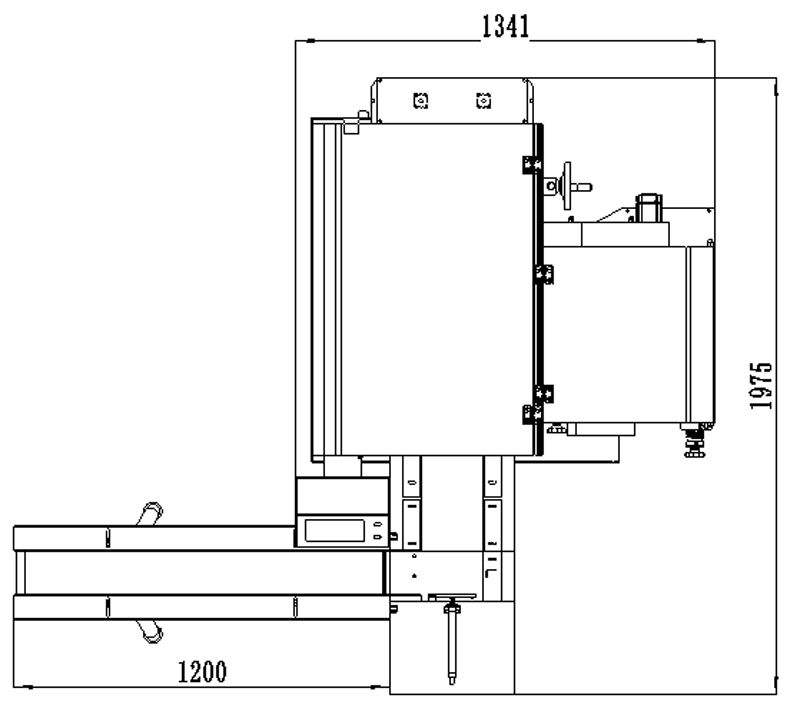

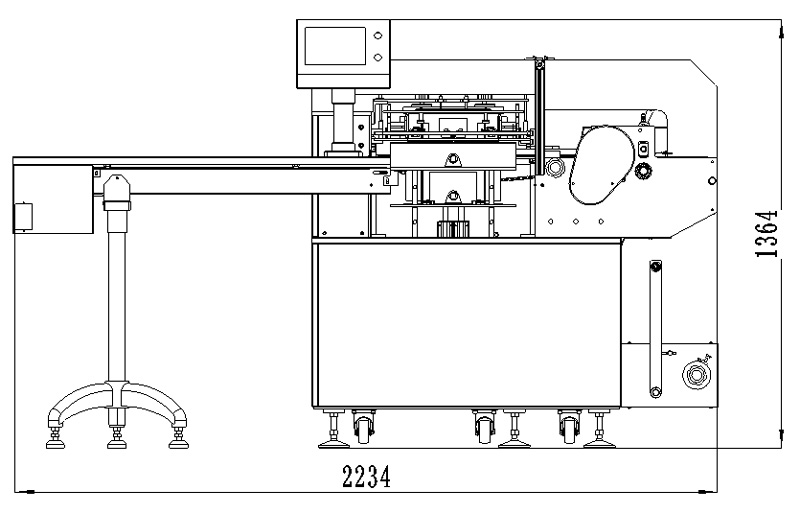

Dimension (mm) 1820×1341×1364 1820×1341×1364
Total weight (kg) 1000 1000
Power (V/HZ) 220V/50HZ 220V/50HZ
Hot sealing temperature (℃) 100-140 100-140
