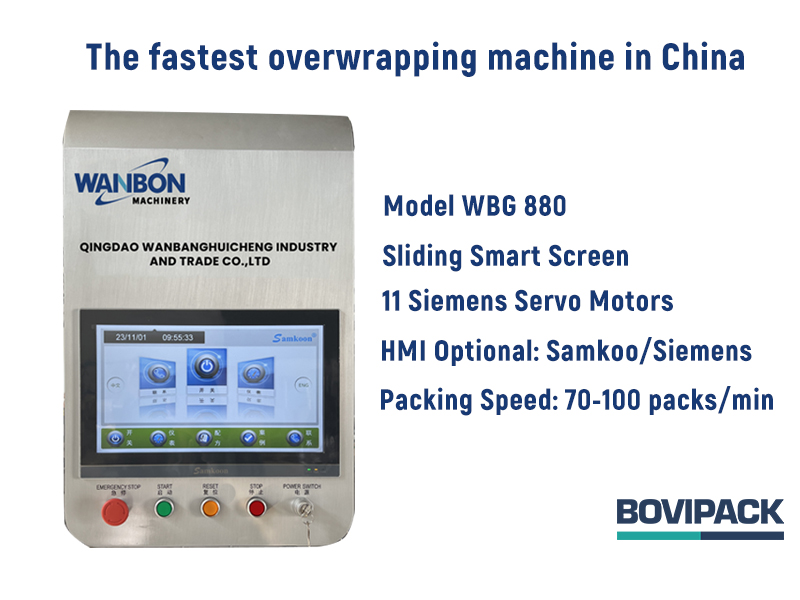

The Best Cellophane Wrapping Machine WBG 880 Overwrapper in China
The fastest, the best, the highest quality, machine model 880 produced by Wanbon Team. Total 11 Siemens servo motors to control. No one can copy its success. More details and amazing functions need to be found by yourselves, welcome to visit my factory, Qingdao city, CHINA.
Email: [email protected]
Product detail
The Best Cellophane Wrapping Machine WBG 880 Overwrapper in China
The fastest, the best, the highest quality, machine model 880 produced by Wanbon Team.
Total 11 Siemens servo motors to control. No one can copy its success.
My company machine retains the original Italian drawing structure, with transparent bopp or pvc film, cutting knives and forming channels on both sides of the equipment,
which do not interfere with each other and are convenient for maintenance; Avoid excessive contact between transparent paper and equipment to generate static electricity.
Other domestic manufacturers of horizontal 3D packaging machines have cutting knives bunder the forming plate, making maintenance inconvenient;
Transparent paper is also under the formed board, which is prone to generating static electricity.
The main technical parameters of Cellophane Wrapping Machines:
| Packaging size | L(80-350)* W(70-200)* H(30-130)(mm) |
| Packing speed (boxes/min) | （70-100） |
| Packaging Materials | BOPP or PVC |
| BOPP or PVC Inner hole diameter
/thickness (mm) |
Φ75/0.021-0.028mm |
| Air consumption (L/min) | (20-30)L/Min |
| Total power (kw) | 6.5 |
| Noise dB(A) | <65 |
| Dimensions (mm) | （standard）2706mm*2223mm*2079mm 3100mm*1500mm*1900mm |
| Overall weight (kg) | 1000 |
| Heat sealing temperature (℃) | 100-140 |
The bottom folding and side folding adopt servo control, which drives the synchronous pulley to complete power output.
The position of the pusher is transported by a linear guide rail, making the equipment higher, faster, more accurate, and stable, and with less noise.
When changing product specifications, it can be adjusted simply by retrieving the formula on the touch screen, which is convenient and fast.
