Super speed cellophane wrapping machine
Wanbon Boway Machinery Co., LTD is specialized at manufacturing packaging machinery and associated equipments. The key technical engineers possess 20 years experience in the packaging machinery.
Email: [email protected]
Product detail
Super speed cellophane wrapping machine
High speed cellophane overwrapping machine Max speed 80 pack per minitue
It is widely used for medical and health care, daily chemical, food and other industries. It can achieve various sizes of single-box wrapping and various forms of bundle box over wrapping.
such as chocolate box overwrapping,gift box overwrapping,pill and medicine products overwrapping,tea box BOPP film wrapping.
It can pack different size box in one machine,no need to change mould.
Full electric control system,with 7 sets servo motor.High efficiency 99%
Packaging Type of carton box wrapping
The main technical parameters of wrapping machine
| Project name | Parameter |
| Packing Dimension L×W×H (mm) | （80-360）×（40-220）×（20-180） |
| Packing speed (packs/min) | （40-80） |
| Packing material | BOPP、PVC、Color packaging film or cotton paper, etc. |
| Inner hole diameter (mm) | Φ75/0.021-0.028 |
| Air consumption (L/min) | （20-30） |
| Total power (kw) | 3.25 |
| Integrated noise dB(A) | <65 |

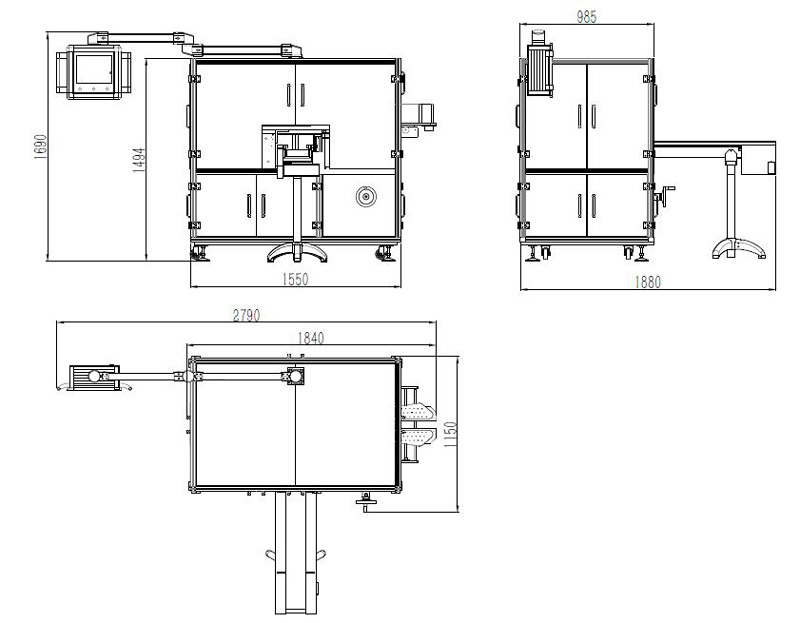

| Dimension (mm) | 1740×1200×1180 |
| Total weight (kg) | 1000Kg |
| Power (V/HZ) | 220V/50HZ |
| Hot sealing temperature (℃) | 100-140 |
Advantages

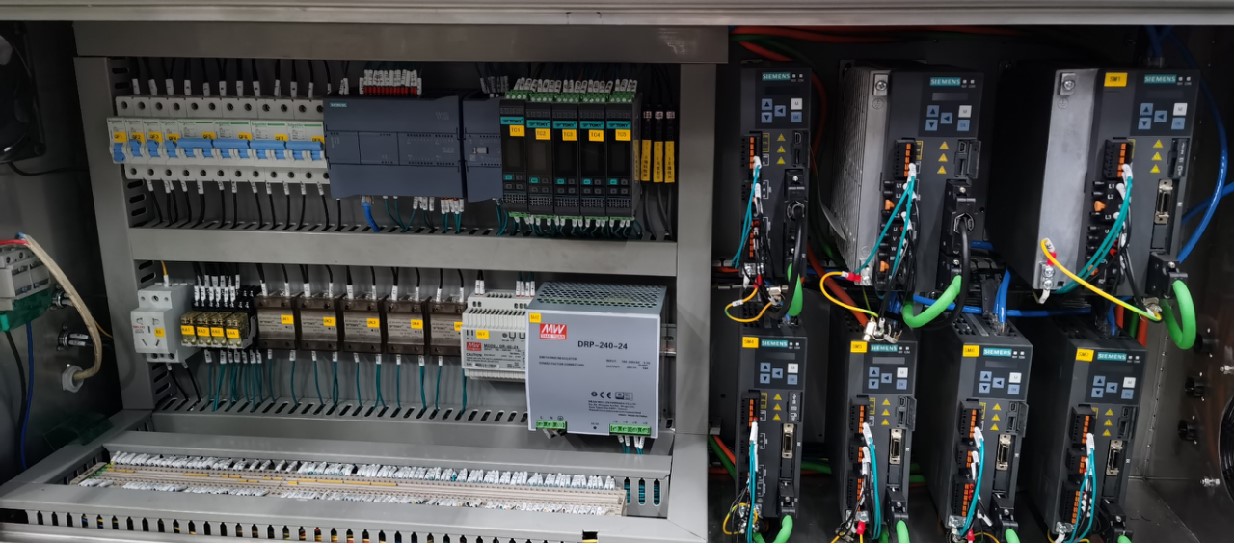

PLC, servo motor and solid state relay, etc.: all adopt international famous brands, with stable and reliable performance
All electrical components are placed in an independent 304 stainless steel power distribution cabinet and installed in accordance with CE standards, which can ensure safe operation and more convenient maintenance.
