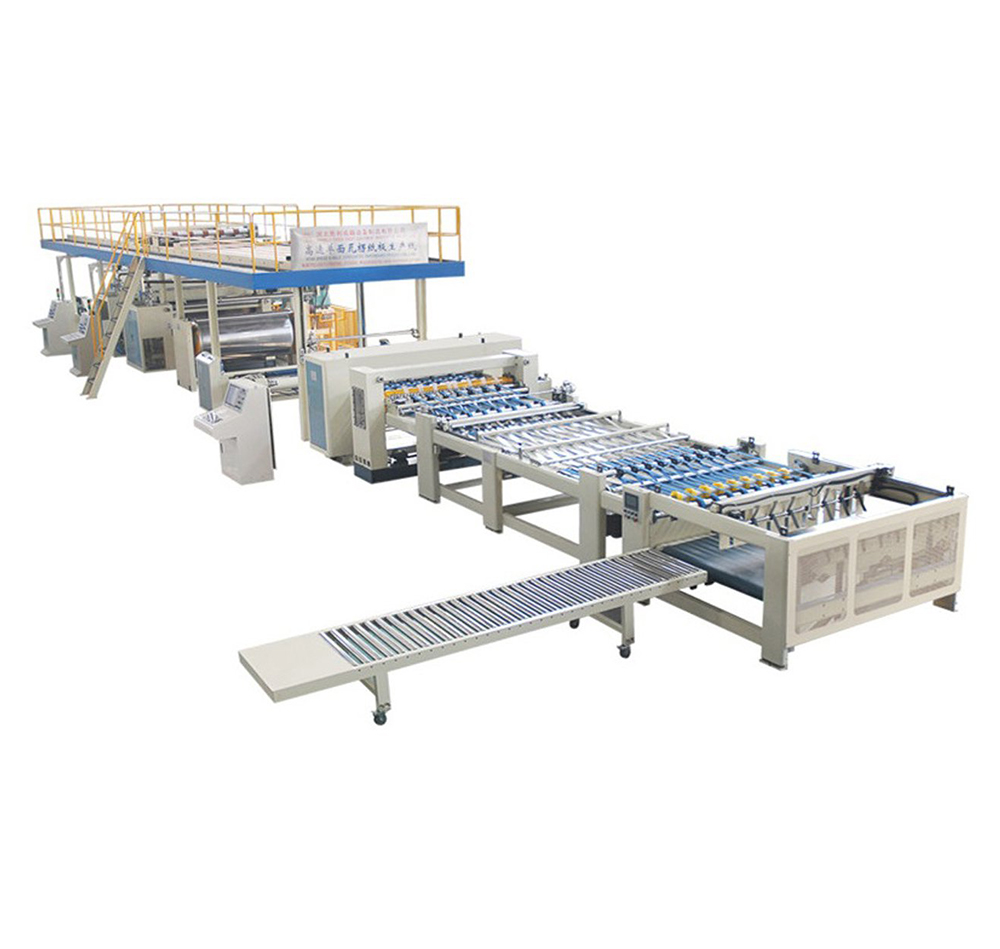

China factory 3 5 7 layer corrugated carton cardboard sheet making machine

China factory 3 5 7 layer corrugated carton cardboard sheet making machine

The corrugated board production line is generally composed of the following parts:
base paper frame machine, paper splicing machine, single-sided corrugated machine,
flyover multi-wafer pulper, hot pressing line pressure separator, surface stacker,
stacker, boiler manufacturing equipment The equipment is combined to enter from the
paper surface, and continuously form a hot-pressing cylinder and a regulating machine. ,
From the flyover frame, after being reheated for more time, the continuous corrugation has
been removed from the shelf after being glued to the double-sided machine. Complete tasks
by complete machines, complete production lines, complete production lines, output by complete production lines.

Wanbon supply whole production line from paper roll to cardboard sheet to final box.

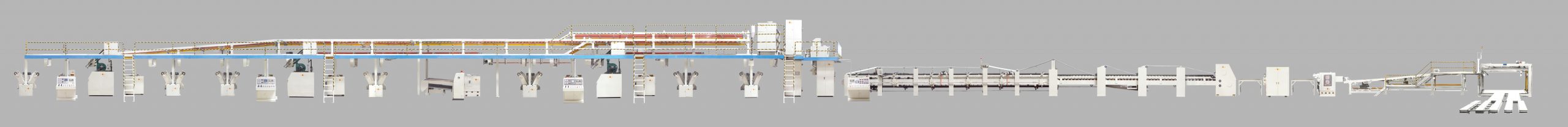

WBJ three, five and seven layer corrugated board production line

Functional features:

◆ the paperboard production line produces qualified paperboard products from the web base paper through pressing corrugated, gluing, drying, cooling and shaping, indentation slitting, transverse cutting, and finally through the processes of transportation and stacking, realizing high-speed and efficient flow operation.

◆ the whole line is mainly composed of shaftless base paper support, preheater, single-sided machine, conveying overpass, gluing machine, double-sided machine, thin knife slitting indentation machine, cross cutting machine, stacker, steam system, pulping system, etc.

◆ the medium and high grade three, five and seven layer corrugated board production lines can be customized according to requirements.

◆ production width: 1400mm-2500mm.

◆ production speed: 50m-300m/min, which can be selected by users on demand.

◆ optional corrugated machine type (uv/a, C, B, e, f) and heating method (steam, oil, electricity)

WBDJW single side corrugated board production line

Functional features:

◆ the single-sided corrugated board production line is an automatic line composed of web support, preheating cylinder, single-sided corrugated host, paper conveying bridge, computer vertical and horizontal cutting and stacking machine, etc. Take web paper as paper material, continuously produce and cut the required specifications of single-sided corrugated board.

◆ the production line is characterized by advanced production process, high automation, stable paperboard quality, low labor intensity and convenient operation. It is an ideal equipment for producing single-sided corrugated paperboard.

◆ design speed: 80-200m/min.

◆ corrugated machine (uv/a, C, B, e, f) optional.

◆ heating mode (steam, oil and electricity) is optional.

Other machine for your reference

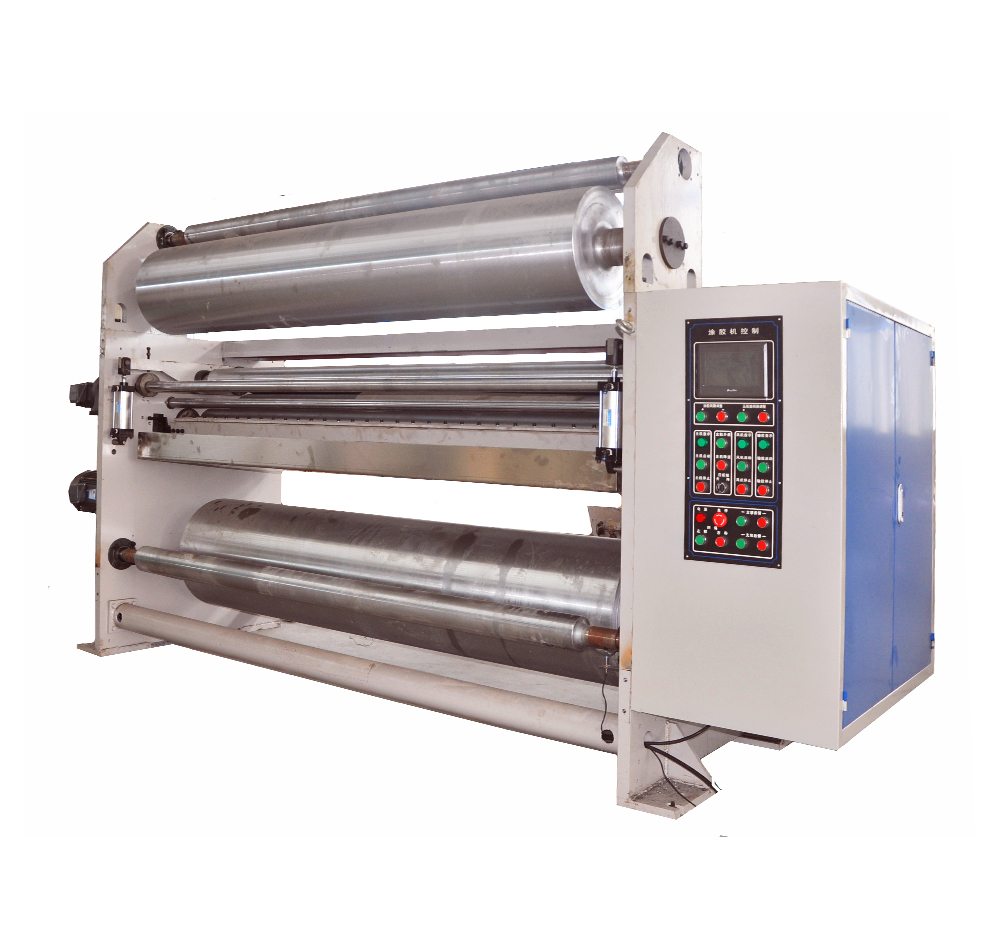

Single layer and multi-layer glue applicator

Full automatic nail gluing machine
