Wanbon Boway Machinery Co., LTD is specialized at manufacturing packaging machinery and associated equipments. The key technical engineers possess 20 years experience in the packaging machinery.

Email: [email protected]


Product detail

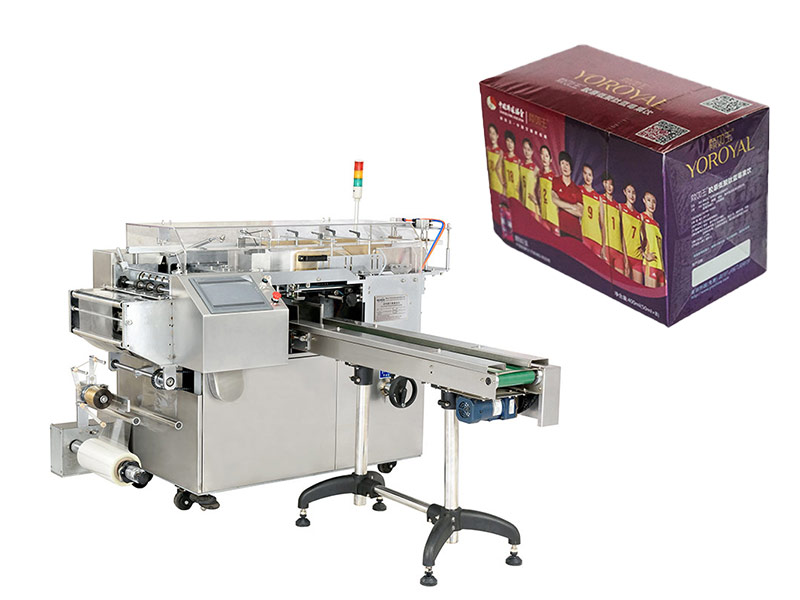

Automatic Cellophane Wrapping Machine with tear tape

cellophane wrapping machine with tear tape|BOPP film packaging equipment

please email via [email protected]

easy tear tape line Package style :

Automatic Cellophane Wrapping Machine with tear tape

Overwrapping machine Features

◆ Compared with heat shrink packaging machine, it is more energy-saving and power-saving, fully sealed packaging: waterproof and moisture-proof, and anti-infection.

◆ Instant sealing, no material stored in the heat sealing station: similar to cold packaging, which has no effect on pharmaceuticals and heat-sensitive products.

◆ Fully automatic: automatic feeding, stacking, packaging, heat sealing, sorting and counting.

◆ The electrical control system is centered on the programmable controller PLC, which ensures stable and reliable operation and stable performance of the equipment.

◆ Automatic zero adjustment and reset function, the equipment is humanized and intelligent. Simpler to use, operate, maintain and repair.

◆ Box-type packaging and solid moldings of different specifications (size, short, width) can be packaged by replacing a few parts.



Product Features :

The WBG type automatic transparent film wrapping machine is carefully designed and manufactured by our company based on the design concepts of Italy and Germany, using advanced three-dimensional computer-aided design software and mechanism motion analysis software, according to the characteristics of domestic packaging materials. This machine is a fully automatic packaging machine, using advanced PLC and servo motor control technology, which can be used independently or online.

Scope of Application:

This product can automatically feed, pack, heat seal, sort, count, and automatically paste anti-counterfeiting easy-pull threads on large-sized boxes. It is your best choice to improve packaging quality, increase packaging efficiency, reduce packaging costs, and improve packaging grades.

The main technical parameters:

Project name 450 520
Packing Dimension L×W×H (mm) (80-300)×(70-200)×(30-135) (80-350)×(70-200)×(30-150)
Packing speed (packs/min) (30-50) (30-50)
Packing material BOPP or PVC BOPP or PVC
Inner hole diameter (mm) Φ75/0.021-0.028 Φ75/0.021-0.028
Air consumption (L/min) (20-30) (20-30)
Total power (kw) 2. 5 2.5
Integrated noise dB(A) <65 <65d
Dimension (mm) 1740×1200×1180 1740×1200×1180
Total weight (kg) 1000 1000
Power (V/HZ) 220V/50HZ 220V/50HZ
Hot sealing temperature (℃) 100-140 100-140
