Product detail

Cellophane over wrapping machine for food biscuit and cookie WBG-ST Series

ECO-Packing of small buscuit overwrapping packing machine,it is packed by overwrapping machine,not  horizontal pillow packing machine

chocolate packing machine,cookie packing machine,brick tea packing machine

Scope of Application:

Model WBG-ST series automatic overwrapping machine

To pack single or multi-box brick tea and biscuit

Automatic feeding,stacking/standing,sorting,packaging,hot sealing,numeration and the paper film automatic viscose finish packing

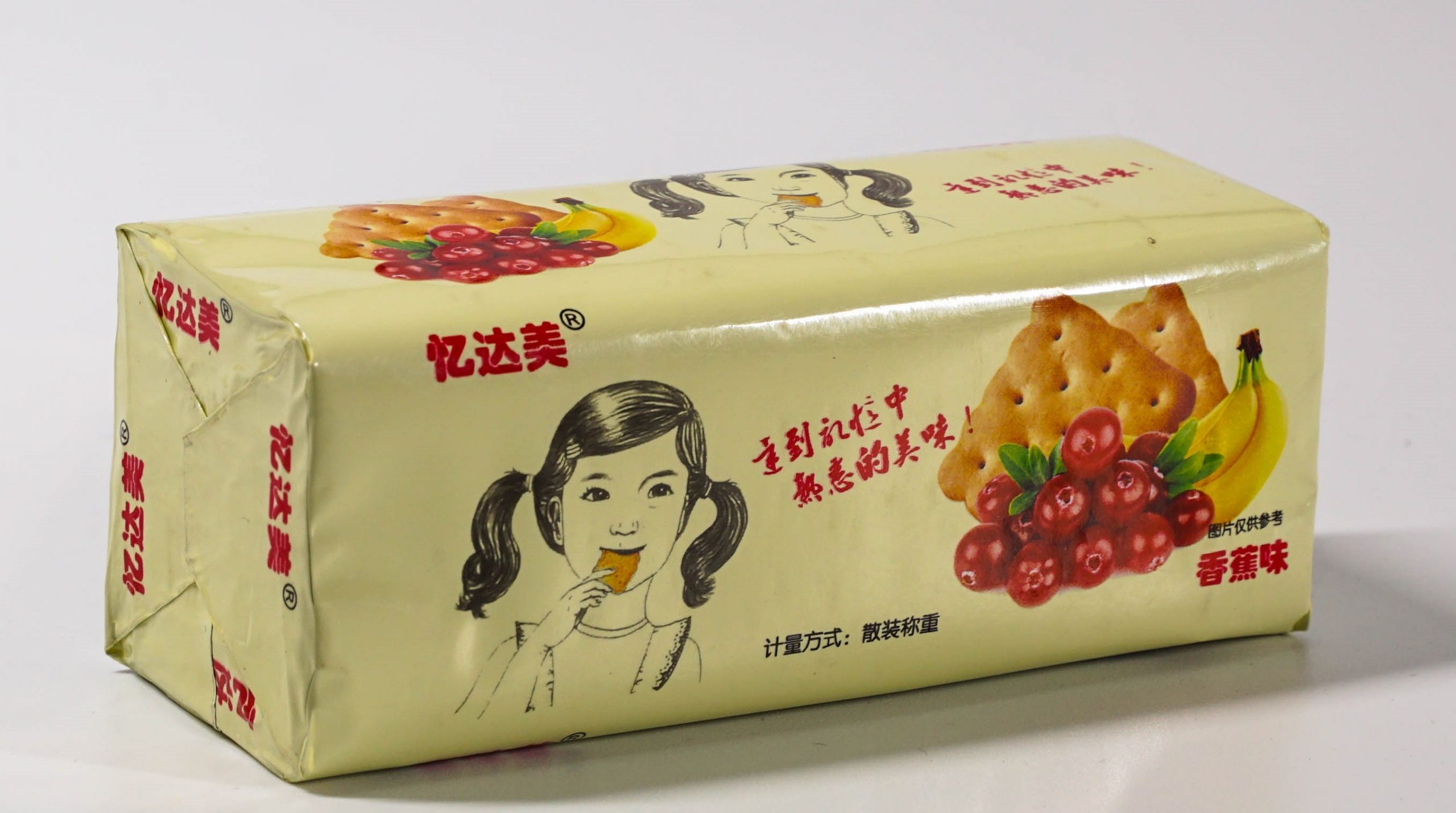

Package style:

Cellophane over wrapping machine for food biscuit and cookie WBG-ST Series



Feature:

1. Fully sealed packaging: waterproof, moisture-proof, anti-pollution, anti-channeling.

2. Instant sealing, no material storage at the heat sealing station: similar to cold packaging, no effect on heat-sensitive pharmaceutical products.

3. Dual servo control system to ensure stable operation of the equipment and control static electricity generation.

4. Fully automatic: automatic feeding, stacking/boxing, sorting, packaging, heat sealing, counting.

5. The electrical control system is centered on the programmable controller PLC: to ensure stable and reliable operation of the equipment, and stable performance.

6. The packaging speed can be steplessly adjusted, and box packaging of different specifications (size, height, width) can be packed by replacing the folding cardboard.



The main technical parameters:

Project name 520 580
Packing Dimension L×W×H (mm) (80-300)×(70-130)×(30-120) (80-350)×(70-160)×(30-120)
Packing speed (packs/min) (20-40) (20-40)
Packing material BOPP/PVC/cotton paper/Ordinary composite film BOPP/PVC/cotton paper/Ordinary composite film
Inner hole diameter (mm) Φ75/0.021-0.028 Φ75/0.021-0.028
Air consumption (L/min) (20-30) (20-30)
Total power (kw) 2.25 2.25
Integrated noise dB(A) <65 <65d
Dimension (mm) 1820×1341×1364 1820×1341×1364
Total weight (kg) 1000 1000
Power (V/HZ) 220V/50HZ 220V/50HZ
Hot sealing temperature (℃) 100-140 100-140

Wanbon also have other model wrapping machine to pack tea&coffee carton box

in single or multi-pack,adds value to the tea contained inside.  Whether the tea carton contains tea bags, loose tea, herbal tea or infusions, overwrapping the outer carton confirms to the consumer that the product inside has not been tampered with since it left the factory.

Flow packing machine for your choice

Cellophane over wrapping machine for food biscuit and cookie WBG-ST Series
