Automatic Cartoning Machine for Bottles Auto Boxing Machine

flow wrapping machine, overwrapping machine, vertical cellophane wrapping machine
automatic cartoning machines

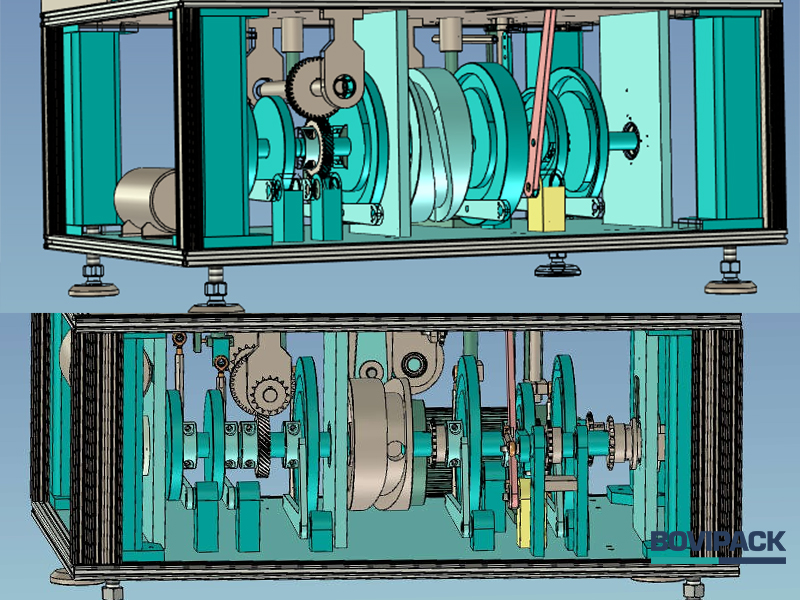

automatic cartoning machines detail
flow wrapping machine, overwrapping machine, vertical cellophane wrapping machine
automatic cartoning machines

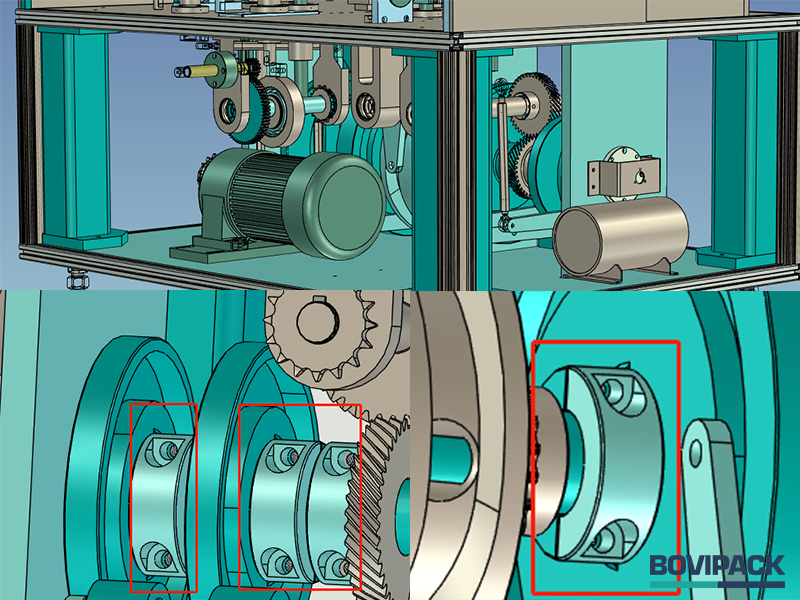

automatic cartoning machines detail

Automatic Cartoning Machine for Bottles Auto Boxing Machine


Automatic cartoning machines handle a variety of products, including bottles, tubes, blister packs, and pouches. The machines are equipped with sensors and controls that ensure precise product placement and carton sealing, resulting in a professional and consistent packaging finish.

Email: [email protected]


Product detail

Automatic Cartoning Machine for Bottles Auto Boxing Machine

Automatic cartoning machines are essential equipment in the packaging industry, providing efficient and reliable packaging solutions for a wide range of products. These machines are designed to automatically fold, pack, and seal products into cartons, saving time and labor costs for manufacturers.

One of the key features of automatic cartoning machines is their ability to handle a variety of products, including bottles, tubes, blister packs, and pouches. The machines are equipped with sensors and controls that ensure precise product placement and carton sealing, resulting in a professional and consistent packaging finish.

Want to see the video of packing process?
please click the link:  AUTOMATIC CARTONING MACHINE

Automatic Cartoning Machine for Bottles Auto Boxing Machine

WBP120 Automatic Cartoning Machines Main Parameters

Packing speed 50-120 boxes/min adjustable
Box/carton specifications L (65~180) W (30~90) H (20~60) mm
Power supply 380V 50Hz
Compressed air 0.5-0.6MPa
Air consumption 10-30L/min
Equipment dimensions 2300× 960× 1550mm
Discharge height (850~900) mm
Equipment weight 1000KG

Automatic cartoning machines are also known for their high speed and efficiency. These machines can process hundreds of products per minute, significantly increasing production output and reducing bottlenecks in the packaging line. This not only improves overall productivity but also ensures that products are packaged quickly and accurately.

The back equipment can be connected with  Turret Type Cellophane Wrapping MachineVertical Type Cellophane Wrapping Machine

Automatic Cartoning Machine for Bottles Auto Boxing Machine

Auto Cartoning Machine Material description

Box/Carton paper: paper quality ≥ 300 g/m²,

white cardboard with white background is preferred;

Box-making requirements: the TUCK FLAP (tongue shape) and indentation of the box/carton should meet the requirements of mechanical cartoning

(our company can provide drawings of the tongue shape of the carton and will not change the external dimensions of the box);

The carton should be free of glue inside and outside;

Cartons should be boxed for transport.

Carton storage: stored at room temperature with an ambient humidity of 80% or less to prevent moisture and deformation.

Automatic Cartoning Machine for Bottles Auto Boxing Machine
